Focus on U.S.S. Fort Jackson

Posted in Media, Memory by Andy Hall on June 8, 2012

My friend Ed Cotham e-mailed me recently with this photo of U.S.S. Fort Jackson, one of the ships making up a part of the blockade fleet off Galveston in the final months of the war. Fort Jackson had a long and active service history, capturing several blockade runners off the East Coast and taking part in the bombardment of Fort Fisher at the end of 1864. When she took up station off Galveston in the early part of 1865, she served as the flotilla’s flagship, under Captain Benjamin F. Sands (1811-1883, right). It was Sands who formally took the surrender of Galveston in June 1865.

When I first saw the image, I thought I’d not seen it before, and told Ed so. Soon after I realized that we’d used a much smaller version of this image on the Denbigh Project website, as it was a lookout aboard Fort Jackson that first sighted the stranded blockade runner at dawn on May 23, 1865, and Sands who ordered the gunboats Cornubia and Princess Royal to open fire. Simultaneously, Sands ordered boats from the blockaders Seminole and Kennebec to board and destroy Denbigh.

A very large proportion of both the U.S. and Confederate navies were vessels that were never built for military service, merchant ships that were either bought while still on the stocks, or pressed into service to meet the rapidly-expanding need for warships. Fort Jackson was one of these. She was built for Cornelius Vanderbilt’s service between New York and Panama, but was purchased by the Navy upon completion in the summer of 1863.

Fort Jackson was a big ship, 250 feet long and 1,850 tons burthen. She normally drew 18 feet of water, which would have made operations close inshore in the Gulf of Mexico difficult. (In fact, when Sands went into the harbor at Galveston to formally take possession of the city, he had to transfer to U.S.S. Cornubia, a smaller ship with a 9-foot draft.) Her two sidewheels were powered by a vertical beam engine, consisting of a single cylinder 80 inches in diameter, with a 12-foot stroke. Fort Jackson was armed with a 100-pounder rifle, two 30-pounder rifles, and eight 9-inch smoothbores.

Anyway, looking at the image there seemed to be a lot of good detail, so I downloaded the full-resolution version from the Library of Congress, and thought it would be fun to see what’s visible. Here we go. . . .

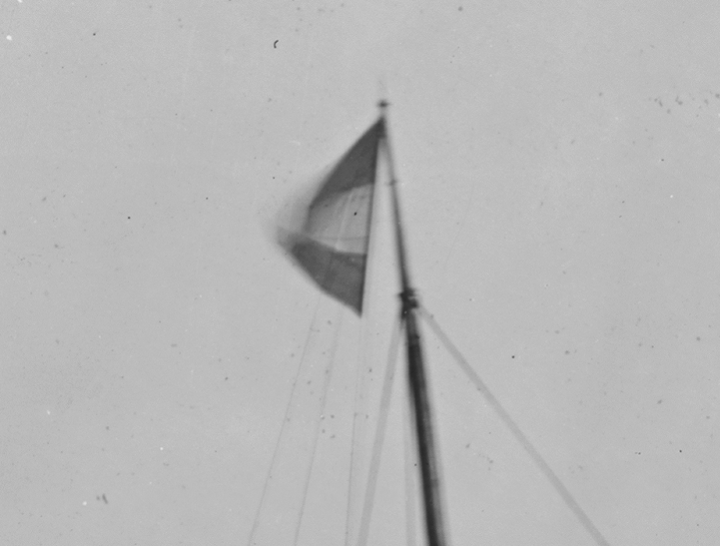

From her foremast, Fort Jackson displays what appears to be a triangular pennant, with one light color and two darker ones. Soon after the war, in 1866, the Navy authorized new regulations for naval flags, including this description of the pennants distinguishing the commanders of individual squadrons within divisions:

The flags of the commanders of the first seven squadrons of divisions had the middle part of a different color from the rest, in the form of a wedge, the base occupying one-third of the hoist or head, and the point extending to the extremity of the flag.

The flag of the first squadron of division was blue — white — blue ; 2d, red — white — red ; 3d, white — blue — white ; 4th, white — red — white ; 5th, white — yellow — white ; 6th, red — white — blue ; 7th, white — blue — red. The flag of the 8th squadron of division was yellow and blue vertical ; the 9th, white and yellow vertical ; and the flag of the reserve squadron blue and yellow vertical.

This pennant aboard Fort Jackson looks very much like an early version of the pennants authorized in 1866, and in his posthumously-published autobiography, Sands makes several references to hoisting his “division pennant.” Today’s official policy is what yesterday’s unofficial practice, and it may be that this photo shows the prototype of squadron pennants authorized after the war.

The “walking beam,” so called because it oscillated back and forth as the paddlewheels turned, can be seen here. Interestingly, this position of the beam is almost “dead center” for the paddlewheel crank (i.e., near the vertical), which would be an unusual position to stop the engine. An officer stands on the far, port-side paddlebox.

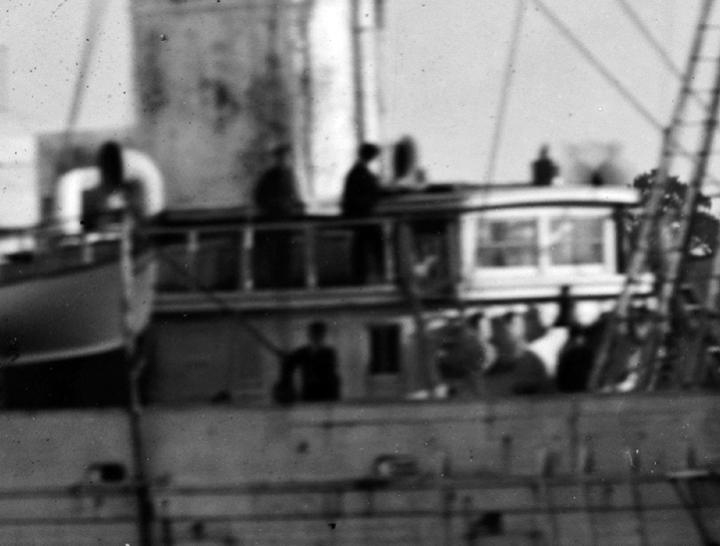

Sailors stand watch atop the deckhouse, just forward of the funnel. The glazed-in pilothouse forms a half-deck at the front end of the deck house. The ship’s bell is visible just below the pilothouse windows.

Two officers, distinguished by their undress frock coats, standing on the starboard paddlebox.

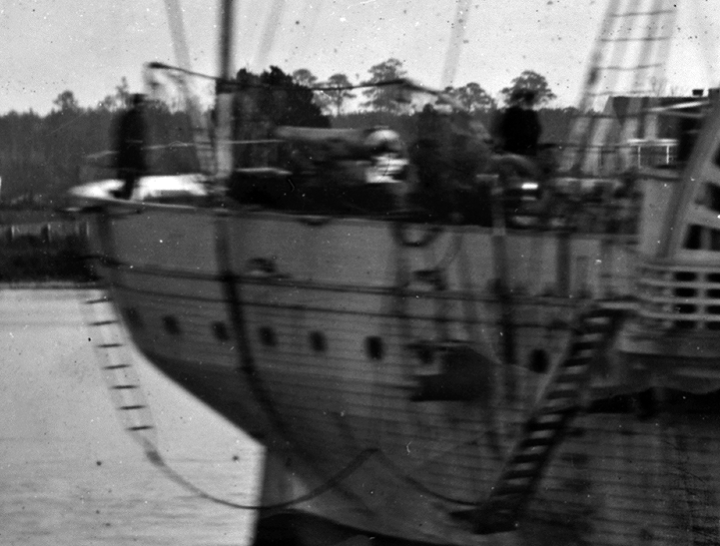

Another 30-pound rifle on Fort Jackson’s fantail, with two of her 9-inch smoothbores projecting from gunports on the deck below.

Closed gunports for Fort Jackson’s forward 9-inch guns on the starboard side. Many ships, both runners and blockaders, were painted white or a very light gray color to reduce visibility and keep the interiors of the ship cool.

Fort Jackson’s biggest gun, her 100-pound rifle, probably a Parrott (right center). This gun, like the two 30-pound rifles, was mounted on apivot to fire on either side of the ship. Large sections of the ship’s rail (center) were hinged to drop out of the way to give the guns a clear arc of fire.

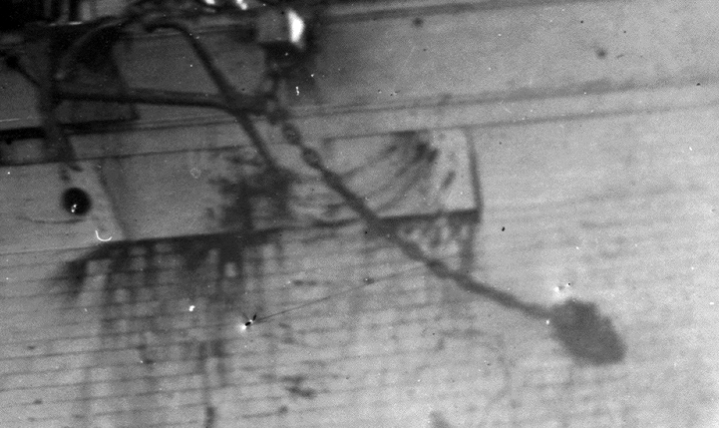

Fort Jackson’s port-side stream anchor, hauled up and secured to the cathead. Semicircular scars and rust stains show where the arm of the anchor scraped against the protective plating, mounted over the ship’s wooden hull timbers.

Finally, Fort Jackson’s second 30-opound rifle, mounted on the forecastle.
